Built for the Realities of Renewable Power
Renewable projects operate under conditions conventional distribution transformers were never designed for: variable generation, inverter-based harmonic distortion, frequent charge/discharge cycles, and remote, corrosive sites.

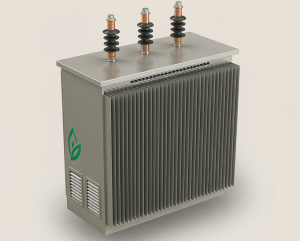

Our renewable transformer line is engineered around those realities — low-loss cores, K-factor rated windings, reinforced insulation, and corrosion-proof enclosures — so your plant stays online for its 25-year design life.
Solar PV Plants
String and central inverter step-up from 0.4 kV to 10/35 kV grid connection.
-
K-factor rated windings and electrostatic shields absorb inverter harmonics and protect insulation.
-
Dry-type units (SCB13 / SCBH15) for rooftop and C&I sites where fire safety matters.
-
Oil-immersed (S20) for utility-scale arrays.
Wind Power
Nacelle and tower-base generator step-up from 690 V to 10–35 kV collection voltage.
-
C5-M marine-grade coating and sealed enclosure for offshore and coastal wind.
-
Reinforced windings withstand continuous vibration and temperature cycling.
Battery Energy Storage (BESS)
Bidirectional transformers supporting seamless charge/discharge power flow.
-
Multi-winding designs for parallel connection of multiple battery clusters.
-
Fire-safe, low-loss construction for containerized storage sites.
EV Charging & Green Hydrogen
DC fast-charging and high-power rectifier solutions for 350 kW+ depots and electrolyzers.
-
Liquid-cooled designs for DC fast-charging depots.
-
Low-harmonic input rectifier transformers for alkaline / PEM electrolyzers.
Need a Custom Renewable Transformer?
Our engineering team supports EPC contractors and project developers with selection, drawings, and factory testing — from K-factor winding design to C5-M coating verification.
